第三代
半导体测试家族
Third generation semiconductor testing family
分类

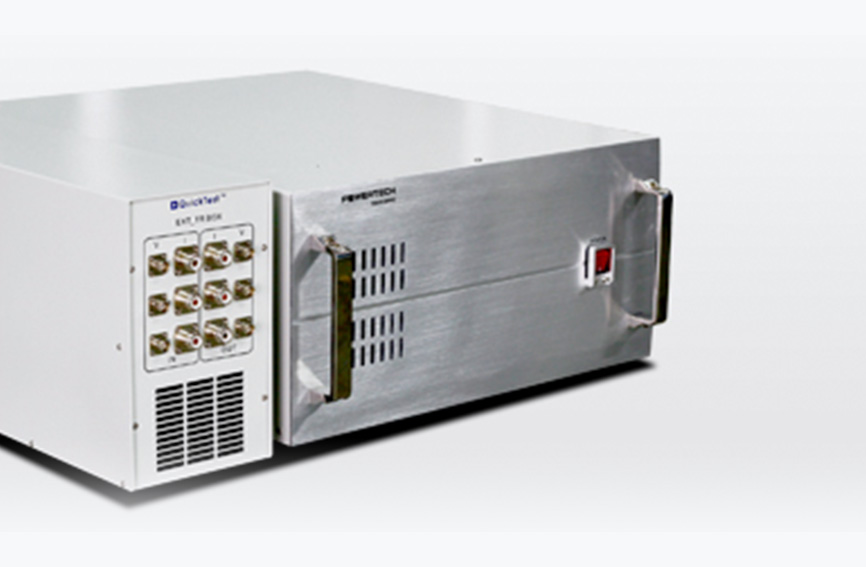

QT-3102 thermal resistance tester
QT-3102-XX test device type: triode, field effect tube, IGBT, diode
|
Support double DIE |
1000W thermal resistance |
Overload and undervoltage protection |
|
| Type | QT-3102 |
| Advantages |
QT-3102-XX test device type: triode, field effect tube, IGBT, diode R26: Can be built into the DC test item of QT-4100 to achieve high-power built-in thermal resistance testing R26：Dual Die testing can be implemented through scanbox |

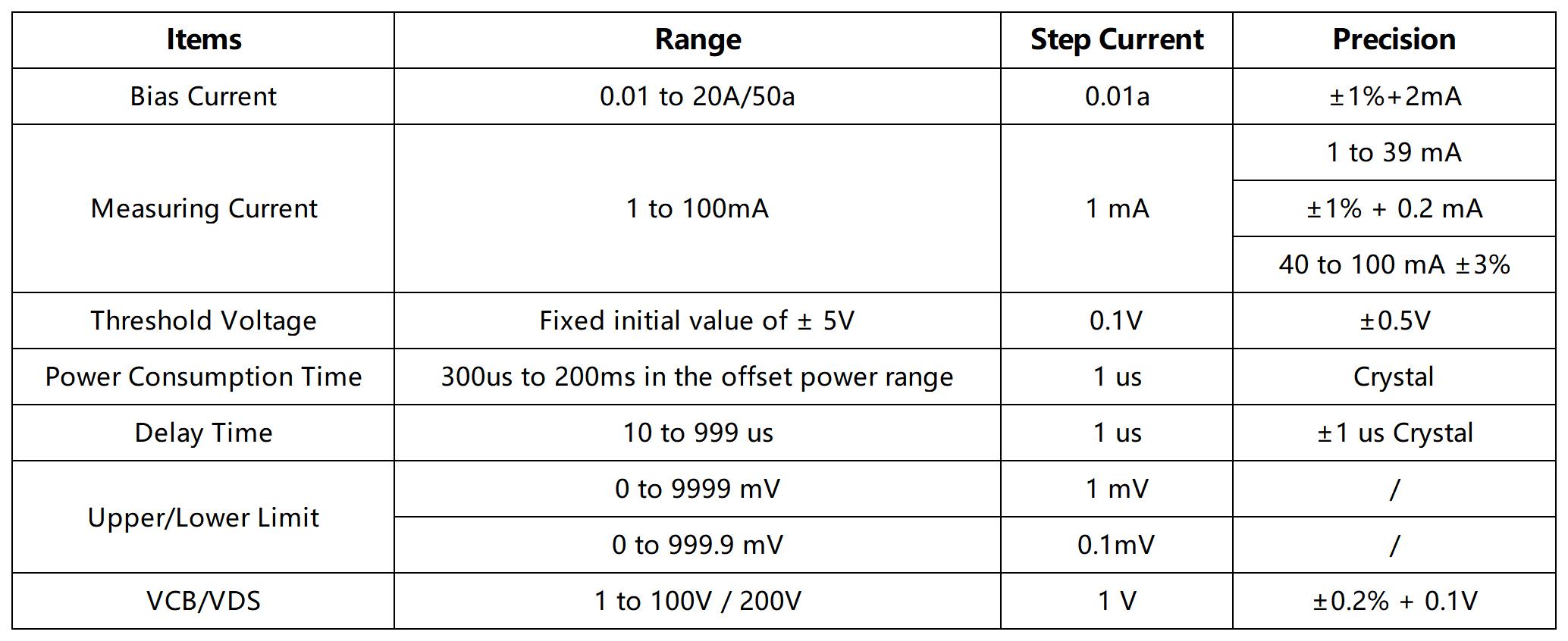

| Main Features |
? The maximum current and maximum voltage depend on the model. The maximum current is 20A and 50A respectively. ? The maximum voltages are 100V and 200V respectively |
Testing standards检测标准
Recommend推荐产品
|
